Product details
The AP 107/740 optics are a powerful astrograph. The triplet lens with a 107 mm aperture provides high-contrast and colour-pure images. The built-in single-lens flattener (field flattening lens) ensures excellent field correction. Overall, the Apo offers a four-lens optical system optimised for astrophotography.
The rotatable and geared focuser has a large adjustment range, so you can find the focus without any problems.
The working distance (back focus) is long enough to allow the use of a 2″ diagonal mirror. This turns the Flatfield Apo into a large-field telescope or even a planetary telescope, depending on the eyepiece used.
Scope of delivery:
- telescope
- eyepiece adaptor
- Tube clamps with carrying handle
- Prism rail
- camera adaptor

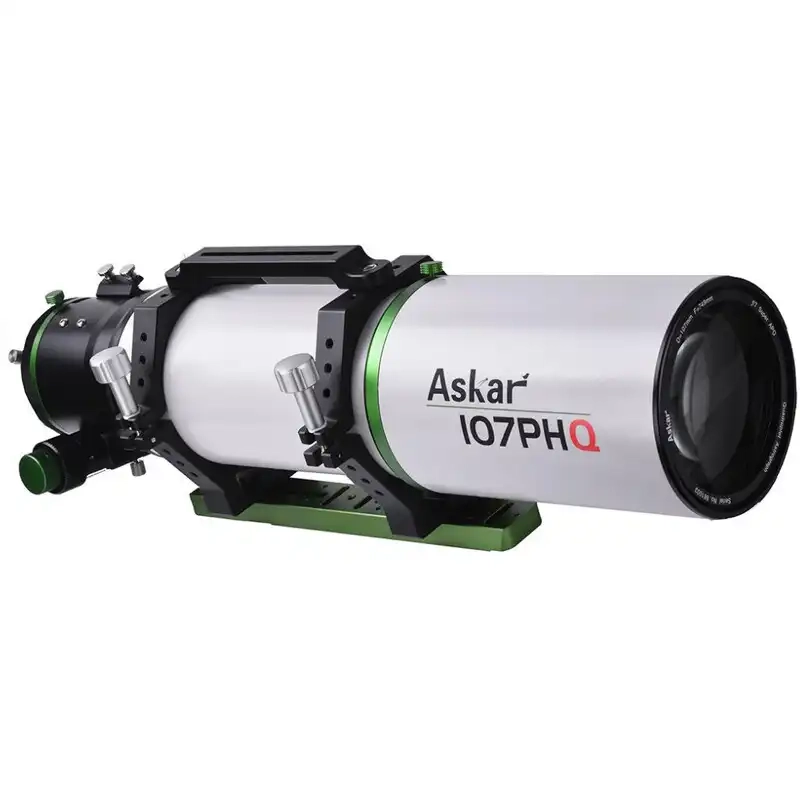

Askar 107PHQ – 107mm F/7 Quadruplet Refractor with 44mm Flat Field
The Askar 107PHQ is the most advanced model in the PHQ series, a 107mm Quadruplet Apochromatic Refractor designed to ensure absolute excellence in astrophotography . Thanks to the sophisticated optical design with two ED glass elements , it provides perfect chromatic correction and a 44mm flat field without the need for additional accessories.
With a focal length of 749mm and a focal ratio of F/7 , the 107PHQ offers exceptional sharpness and definition throughout the field. An optional 0.7x reducer is available , bringing the telescope to 490mm F/4.9 , perfect for wide-angle shots and extended objects.

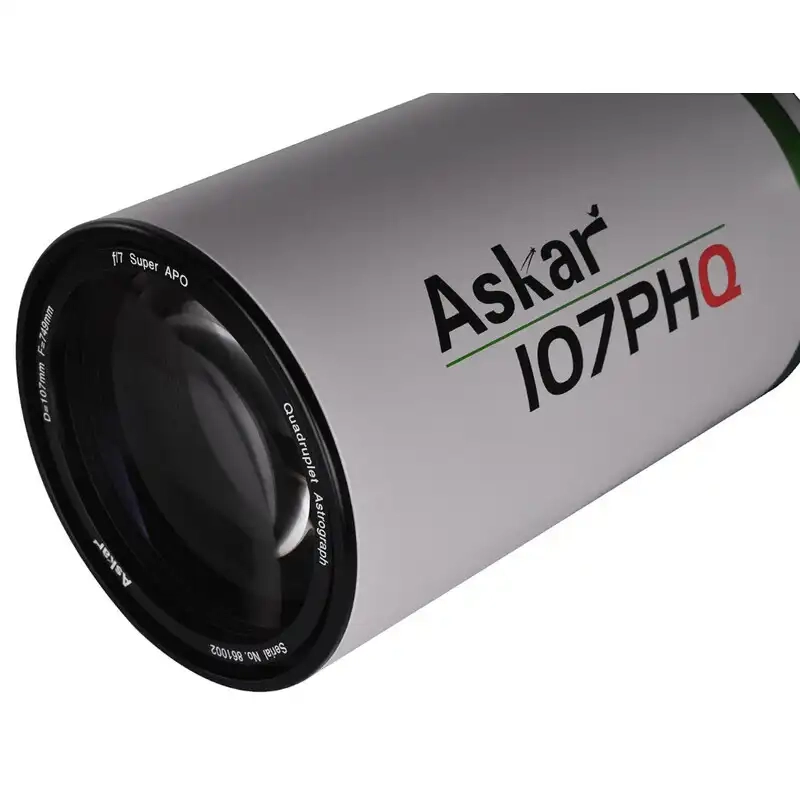

Quintulet precision optics
- Ohara FPL53 2-element ED glass air-spaced quadruplet lens (Made in Japan)
- Flat field up to 44 mm diagonal
- No chromatic aberration even at maximum magnifications
- Multi-coating treatment on all surfaces
Superior mechanics and quality control
- ASKAR 4″ Rack & Pinion Focuser with 1:10 Ratio
- Integrated 360° rotator for correct camera orientation
- Compatible with heavy payloads for deep-sky imaging
- Interferometric quality control on each specimen
Maximum connection versatility

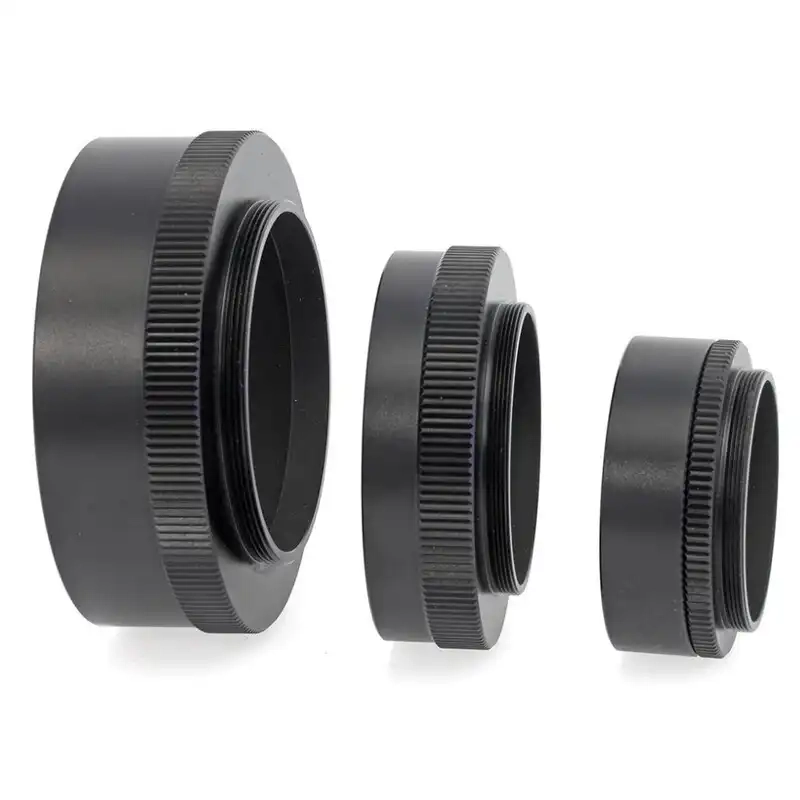

The 107PHQ features a full set of thread adapters (M86/M68/M54/M48) to make it easy to connect cameras, filters and astrophotography accessories.
Package contents: OTA 107PHQ, rings, handle, 300mm Vixen bar, set of 4 photo adapters, carrying case, manual.
