ZWO Camera ASI2600 MM-AIR Mono (with Guide and Built-in ASIAIR)

Κατόπιν παραγγελίας (7-14 Ημέρες)

(-6%)

Ασύρματη Αστροκάμερα για Αστροφωτογράφηση Βαθέος Ουρανού, Σελήνης & Πλανητών (Ψυχόμενη)

Παραλαβή από το Κατάστημα
Δωρεάν Μεταφορικά (BoxNow & Courier)
Εγγύηση Ποιότητας 2 Χρόνια

SKU: ZWO-TEL-0078

Brands: ZWO

Περιγραφή

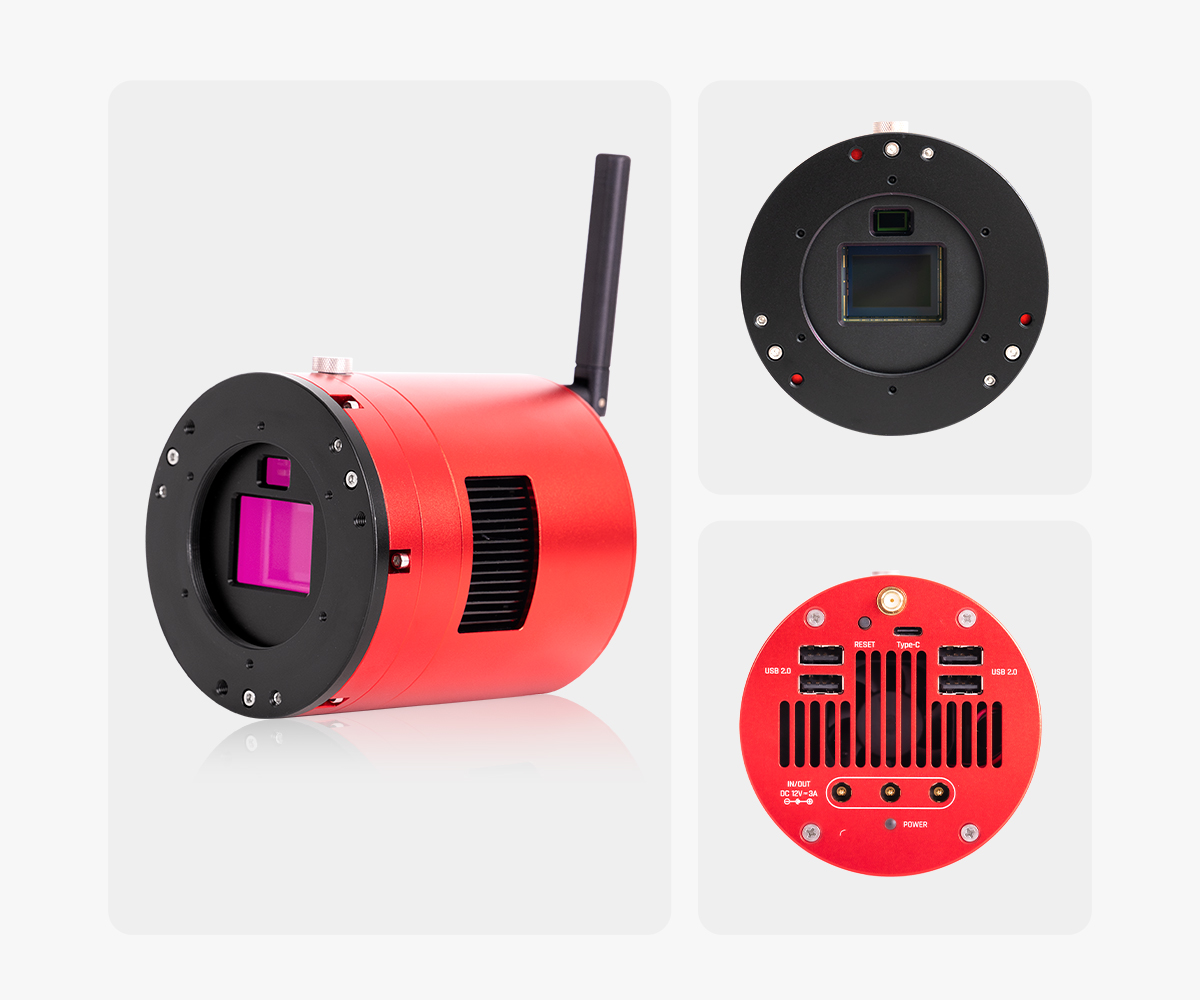

ZWO ASI2600MM AIR – APS-C Cooled Monochrome Camera with Built-in Guide and ASIAIR System

The ZWO ASI2600MM AIR represents the evolution of modern astrophotography: a cooled monochrome camera with a high-performance APS-C sensor, integrated guiding, ASIAIR intelligent control system and fully wireless connection capabilities. It combines three fundamental functions in a single device: imaging, autoguiding and smart management of the astronomical setup, drastically reducing wiring and simplifying every operation.

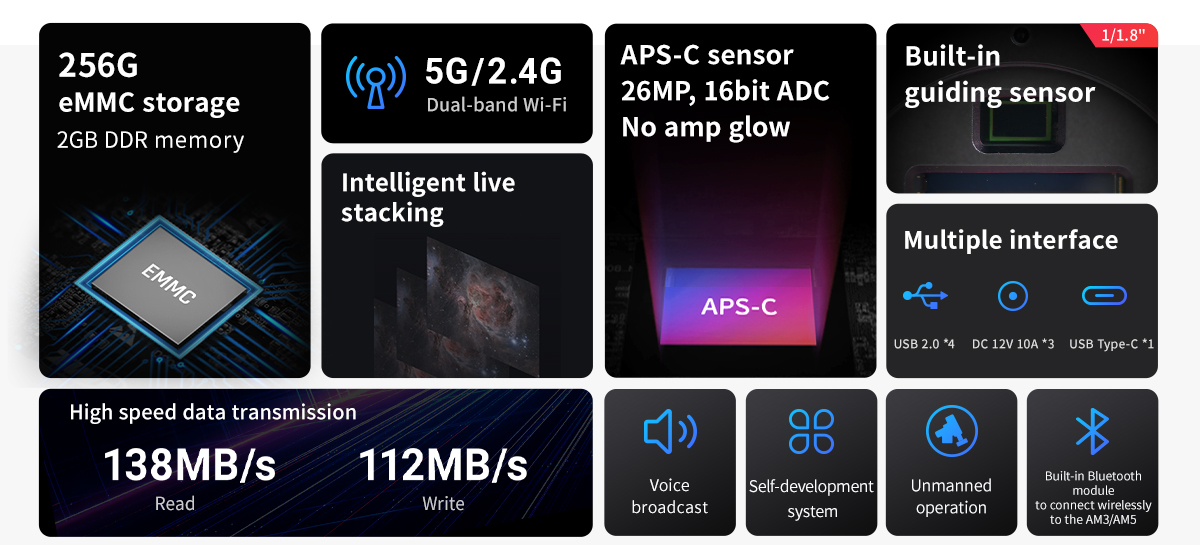

Main features

Sony IMX571 monochrome sensor in APS-C format , 26 effective megapixels , with 16-bit ADC , absence of amp glow , and full well capacity extended to 73Ke .
High-speed 256GB eMMC internal storage (138MB/s read, 112MB/s write) and 2GB DDR4 RAM .
Integrated SC2210 guidance sensor , with 92% QE sensitivity at 500nm, very low reading noise (0.6e) .
ZWO internal OS developed in-house, upgradable via OTA, stable and tested with over 300 benchmarks.
Full wireless control via ASIAIR App, ZWO ASIStudio software or third-party software compatible with ASCOM Alpaca protocol.
Advanced connectivity : 4 USB 2.0 ports for accessories (focuser, filter wheel, mount), 3 DC 12V 10A ports (working both in input and output), 1 USB Type-C port for fast transfers.
2.4GHz / 5GHz dual-band Wi-Fi with high-performance external antenna and built-in Bluetooth for direct connection with ZWO AM3/AM5 mounts.
Capture mode with live stacking , real-time image processing and direct sharing to social media and communities.
Simplified on-axis guidance mode for greater accuracy than off-axis guidance.
Integrated voice function and the ability to operate completely automatically and without assistance.

Operational benefits

No complicated wiring or risk of accidentally tearing cables.
Eliminate the need for external computers, separate guidance modules or multiple software.

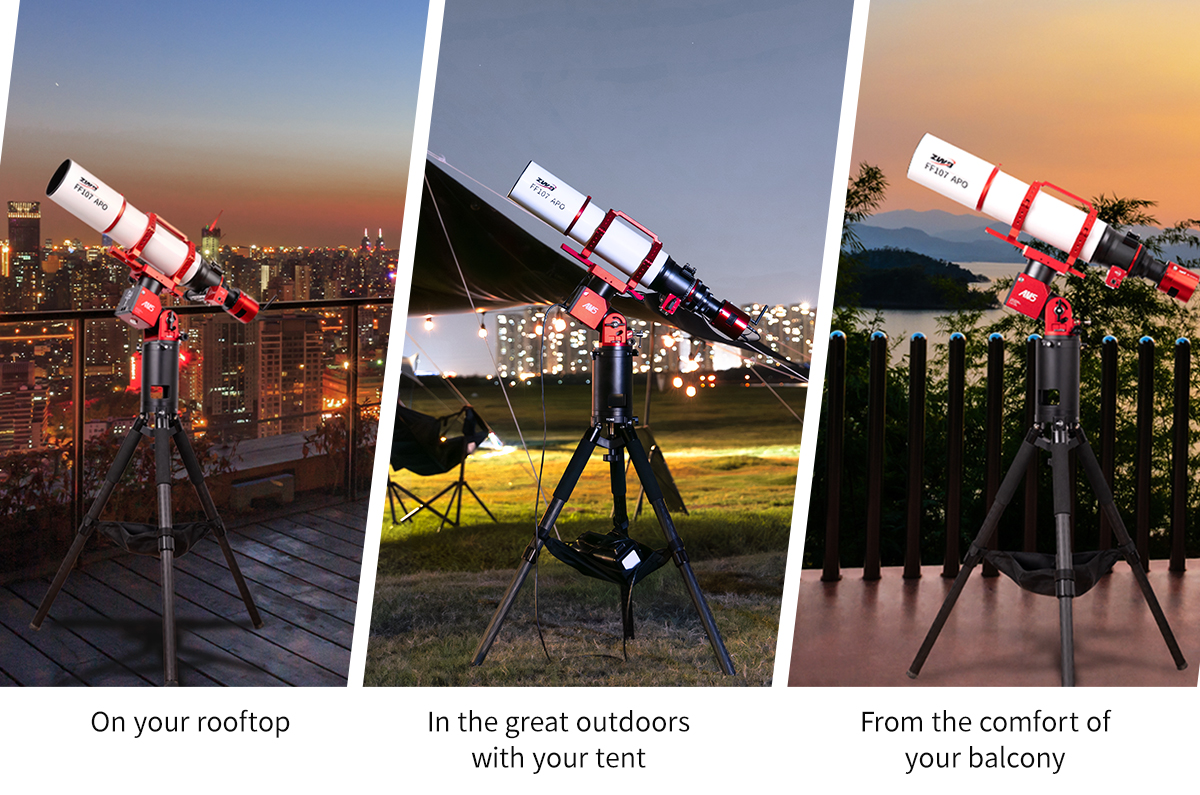

Possibility to operate from remote locations, balconies, terraces or campsites , thanks to the total independence of the system.
Ideal for traveling astrophotographers or anyone who wants a clean, uncomplicated setup.

Main sensor performance

The Sony IMX571 sensor offers a resolution of 6232 x 4168 pixels , with 3.76 µm pixels , an active size of 23.5 x 15.7 mm and a diagonal of 28.3 mm. The absence of amp glow allows long exposures without artifacts and, thanks to the high well capacity and wide dynamic range, it allows you to capture deep details both in the bright areas and in the fainter areas of celestial objects.

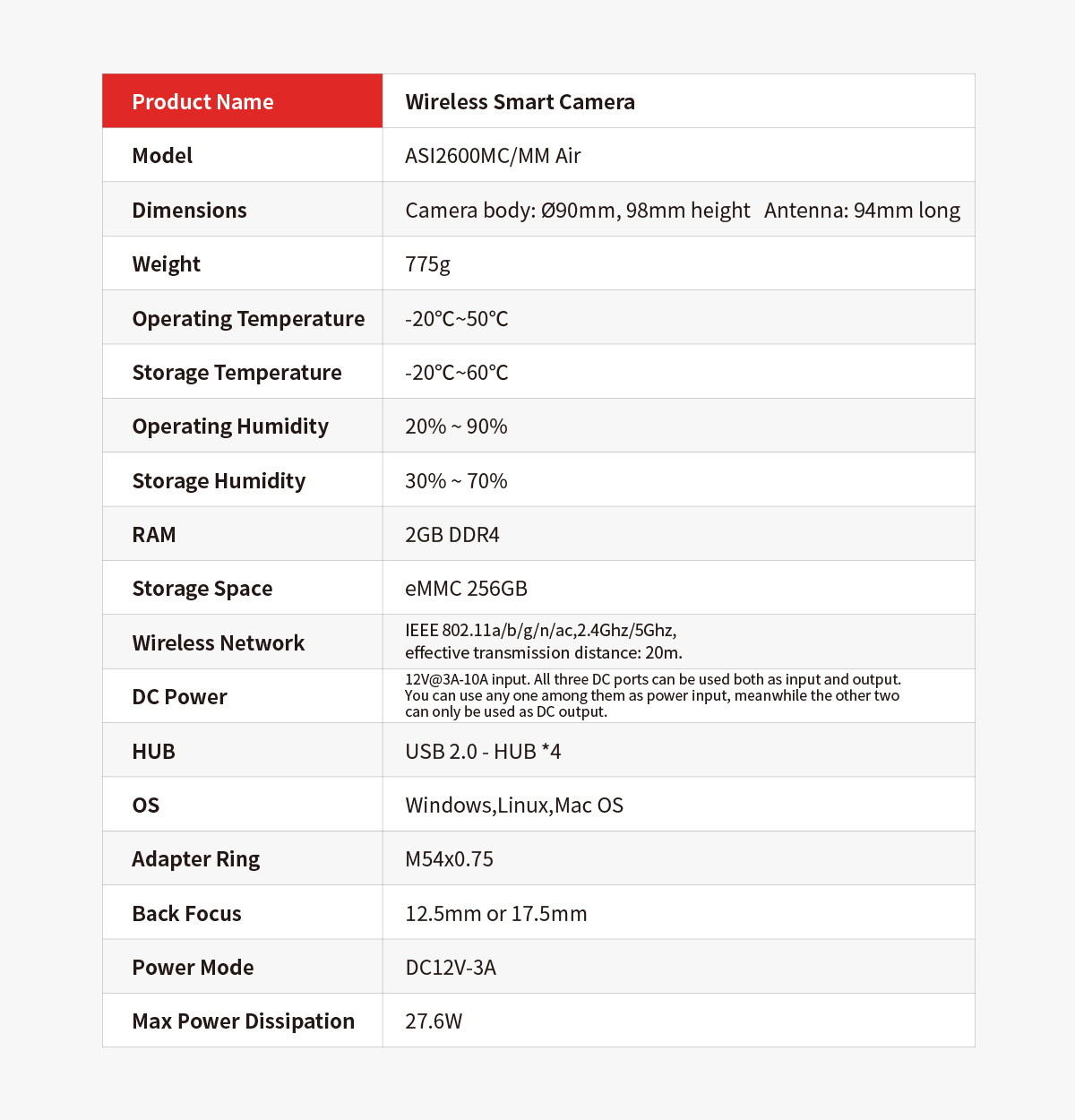

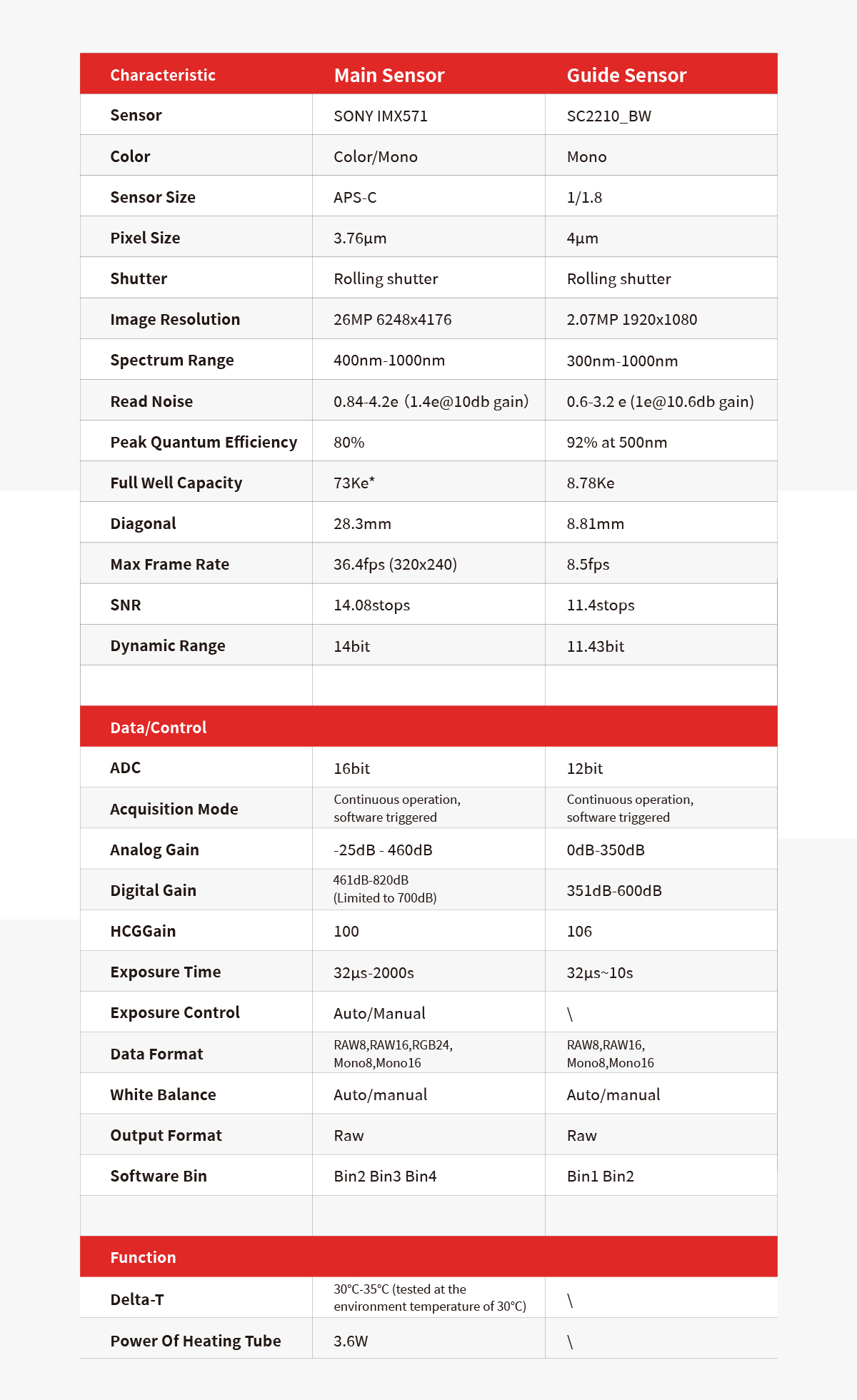

Technical specifications

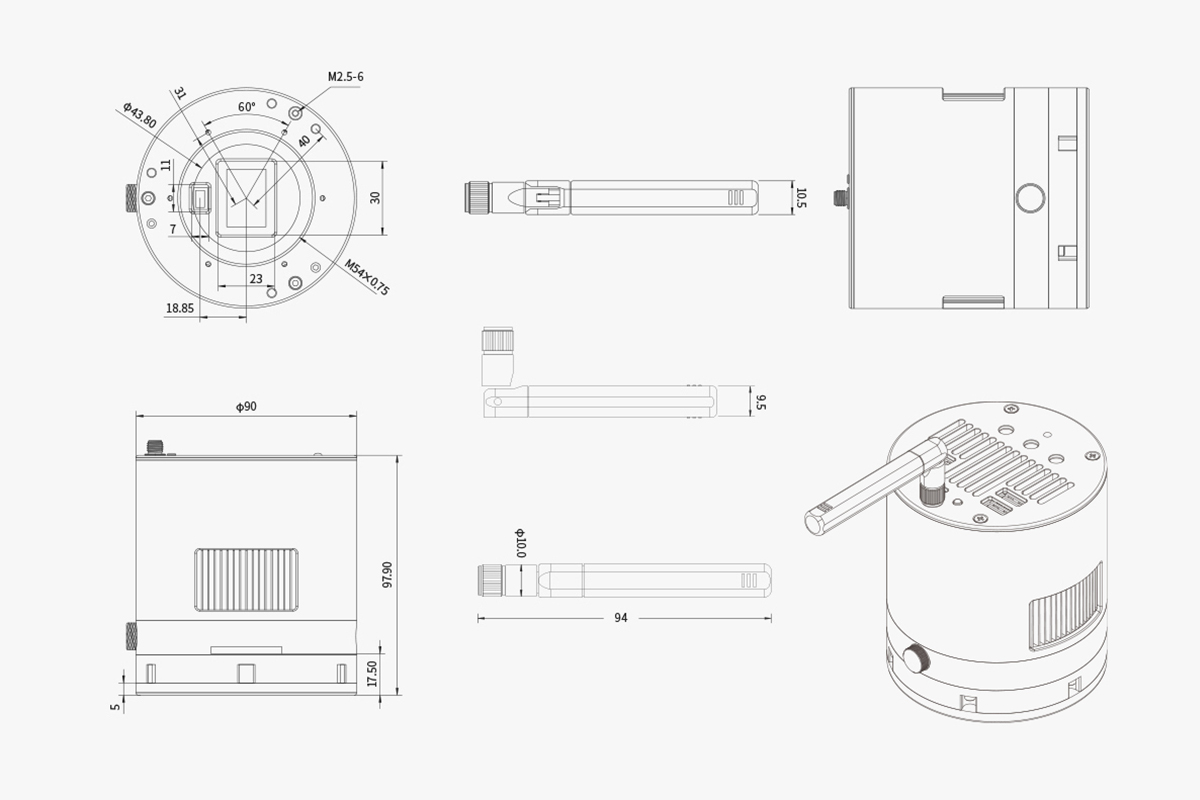

Camera body dimensions : diameter 90 mm, height 98 mm
Weight : 760 g
Antenna size : 94mm
Operating temperature : -20°C to +50°C
Storage temperature : -20°C to +60°C
Operating Humidity : 20% – 90%
Storage humidity : 30% – 70%
Maximum consumption : 27.6 W
Power supply voltage : 12V 3A to 10A

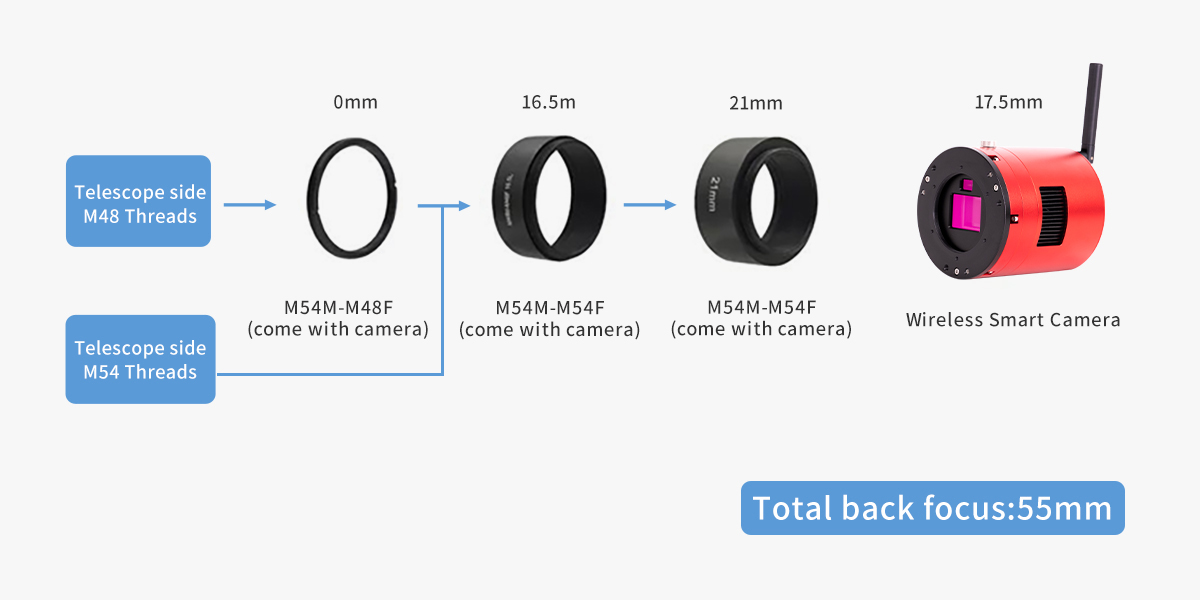

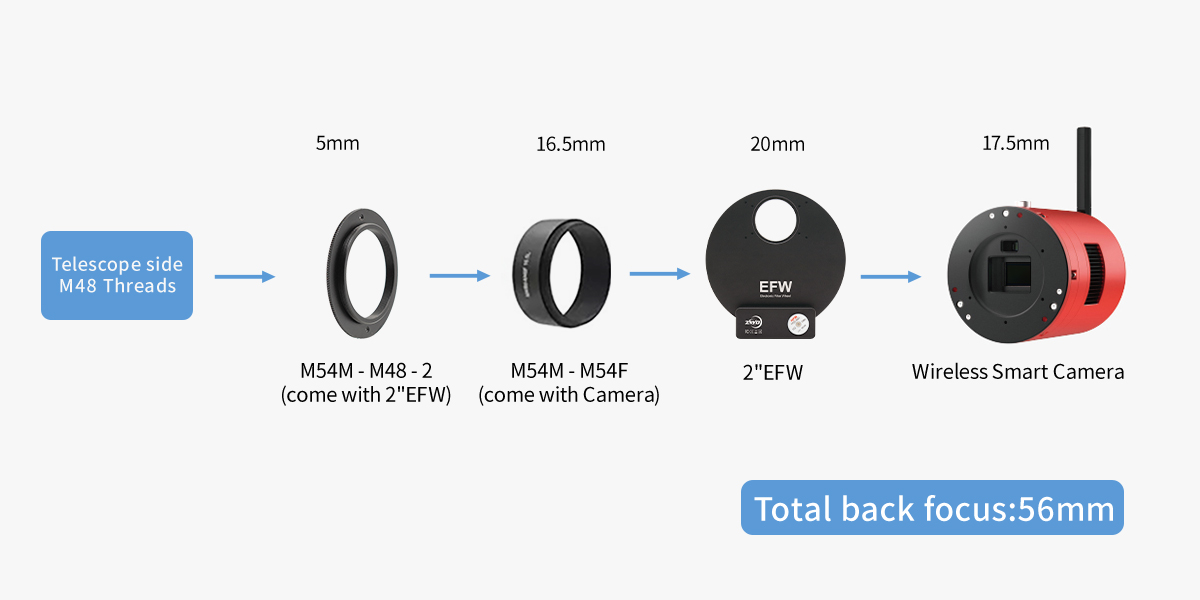

Backfocus : 12.5 mm or 17.5 mm (depending on adapter configuration)
Connections : USB 2.0 x4, USB-C x1, DC 12V x3
Compatible operating systems : Windows, Linux, macOS
Supported file systems : Internal eMMC 256GB + support for external memory up to 1TB (USB)
Optical interface : M54x0.75 thread

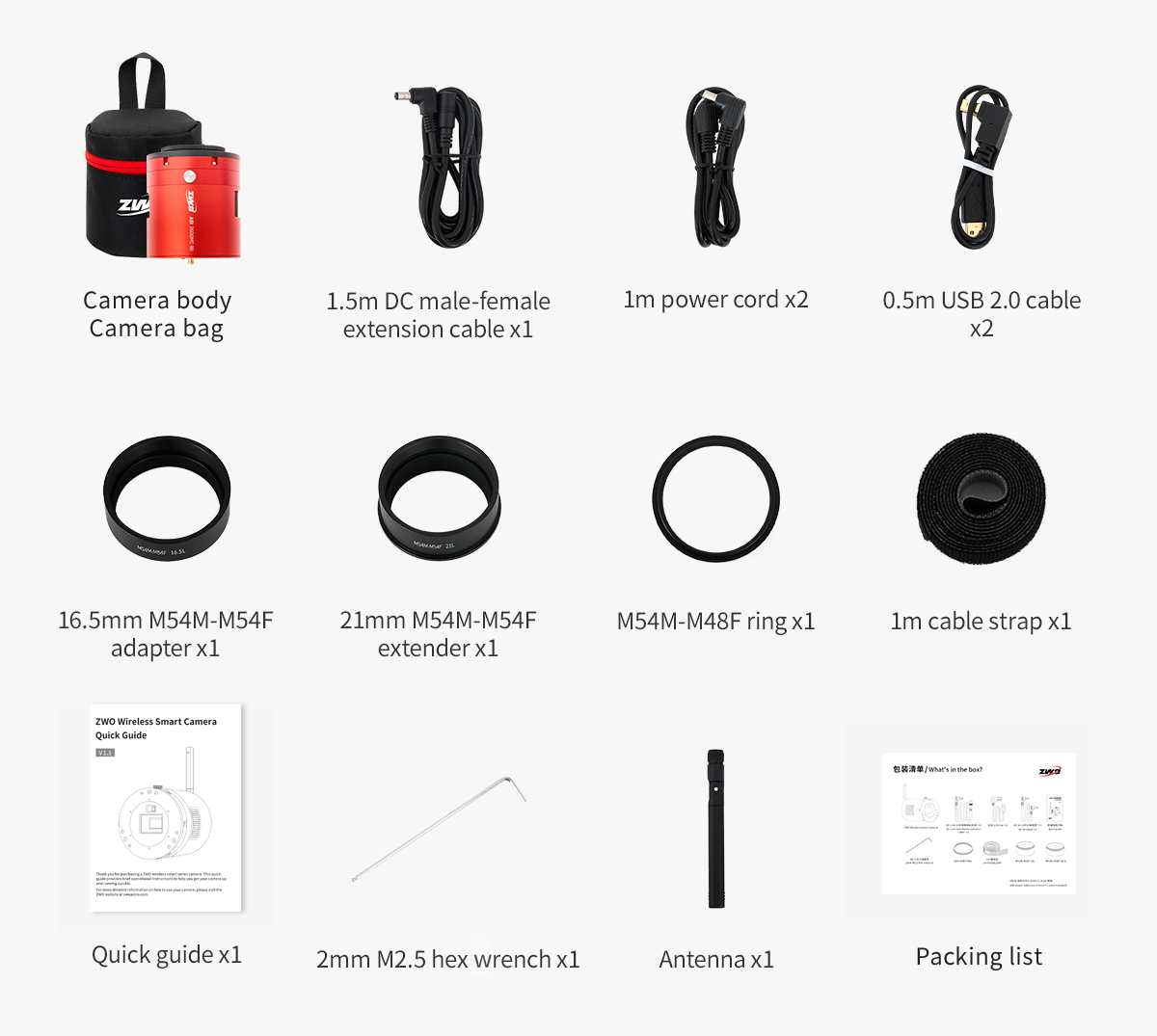

Package Contents

1x ZWO ASI2600MM AIR Camera Body
1x External Wi-Fi Antenna
1x DC Male to Female Extension Cable (1.5m)
2x Power cables (1m)
2x USB 2.0 cables (0.5m)
1x M54M-M54F 16.5mm adapter
1x M54M-M54F 21mm extender
1x M54M-M48F adapter ring
1x Cable tie (1m)
1x Allen key M2.5 (2mm)
1x Quick Start Guide

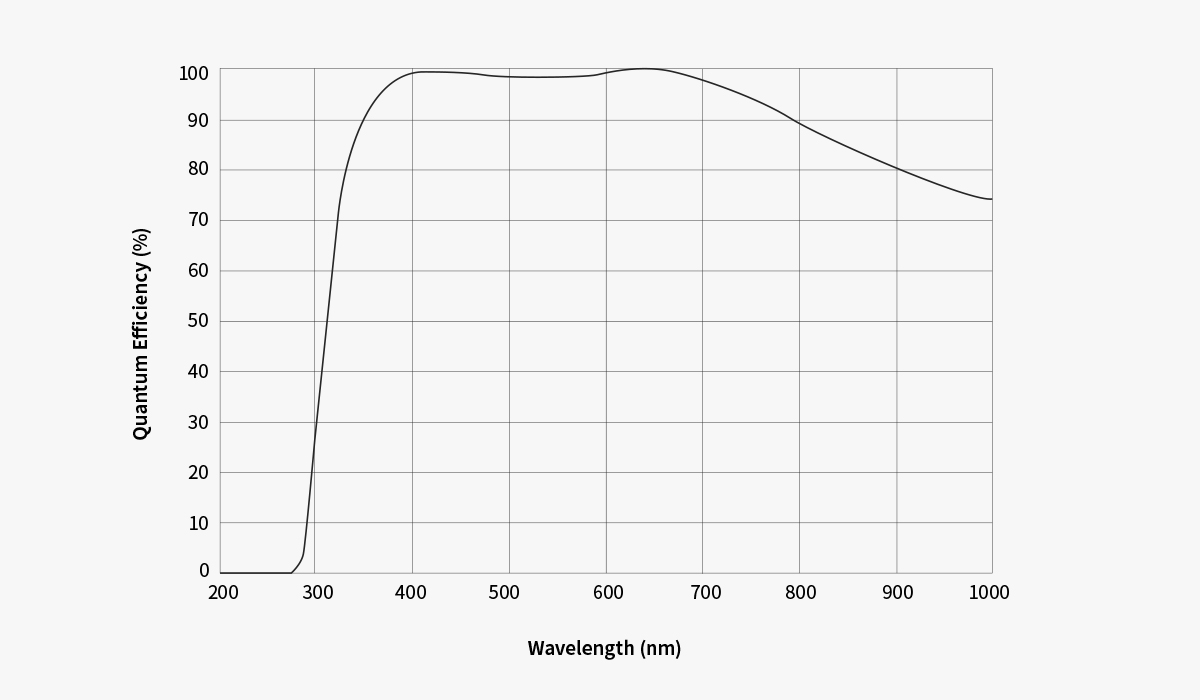

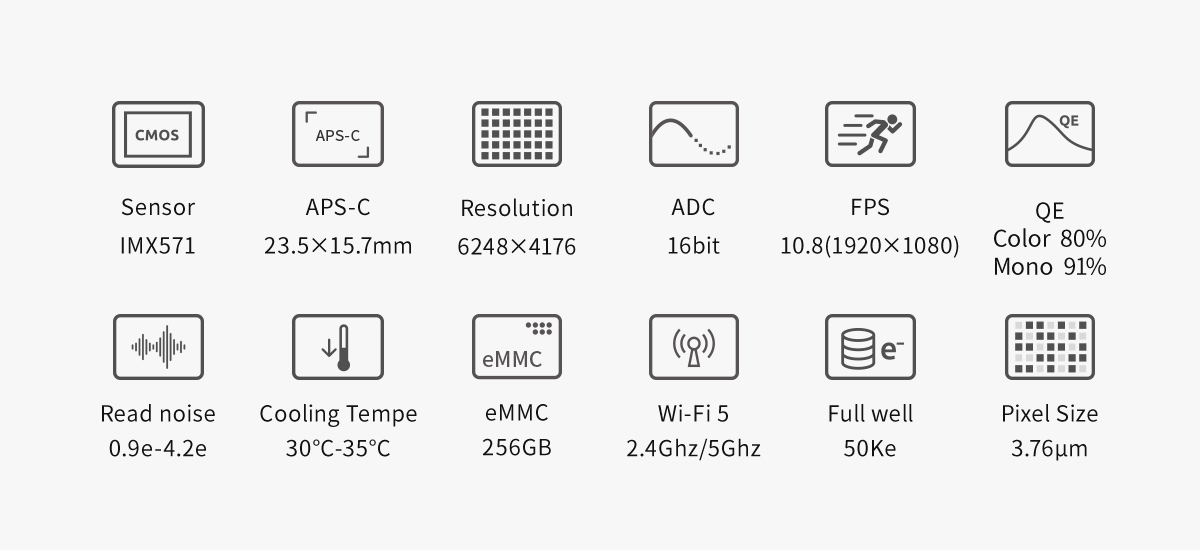

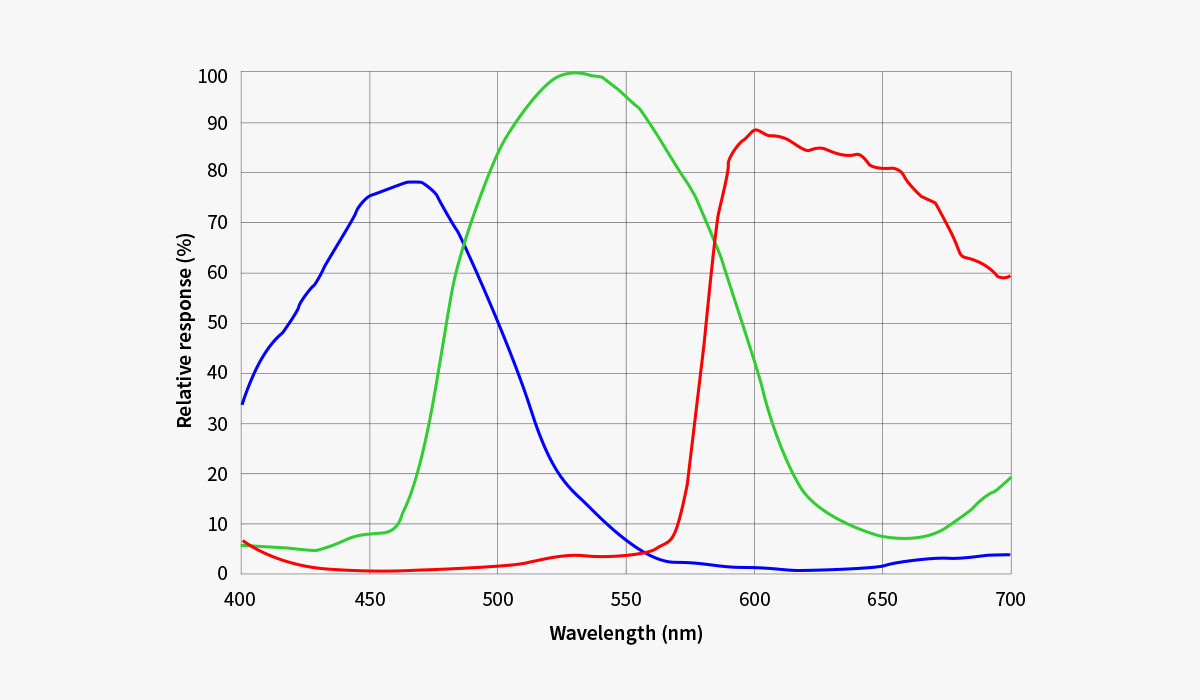

Main Sensor

The main IMX571 sensor features an APS-C format and 26MP total pixels. It is 23.5mm in width x 15.7mm in height, and the diagonal is 28.3mm. The 3.76um x 3.76um small pixel size accommodates an impressive full depth of 50 ke, which the new hardware technology has extended even further to 73 ke.

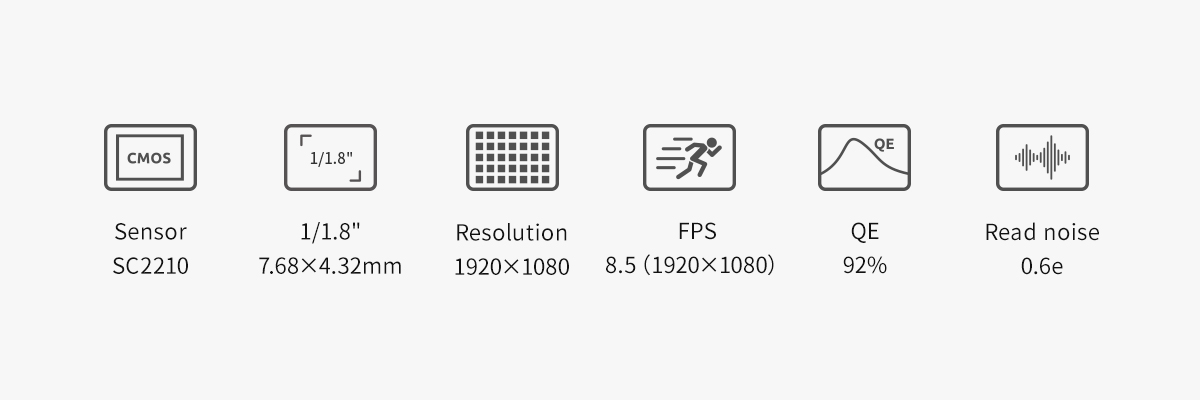

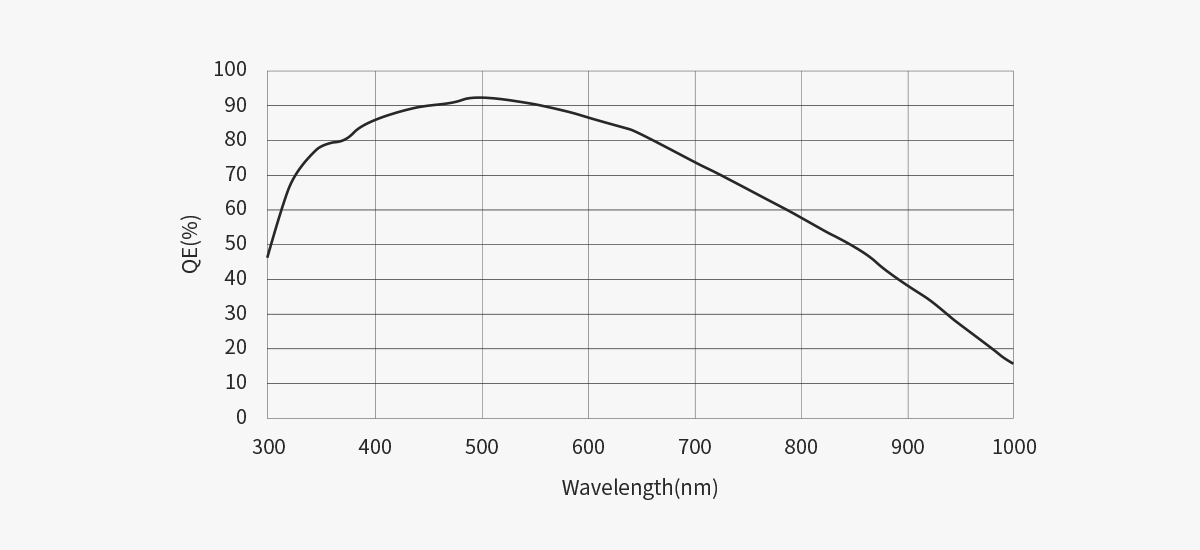

Guide Sensor

The SC2210 sensor, taken from the ASI220MM Mini camera, has very high sensitivity. The QE peak value reaches 92% at 500nm, and the read noise is as low as 0.6e. As the new generation of guide sensor, it has achieved great results in guiding, as hundreds of astrophotographers have proved.

Example Images

Enjoy the beauty of the night sky anywhere.

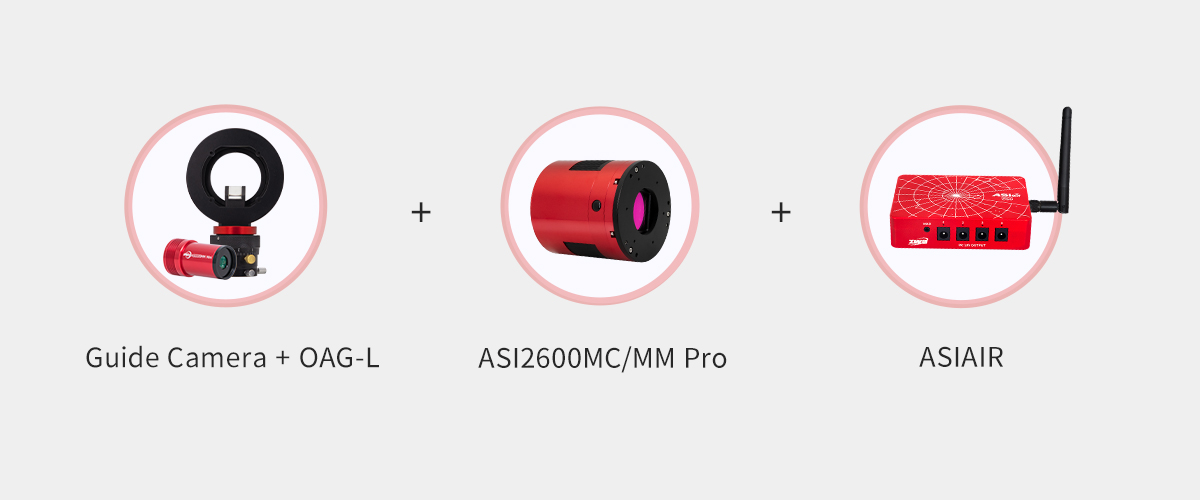

Start Your Astrophotography Journey with Great Convenience

The ASI2600MC/MM Air is a compact, lightweight device that combines guiding, imaging, and smart control. Say goodbye to complex setups and enjoy a seamless, hassle-free astrophotography experience.

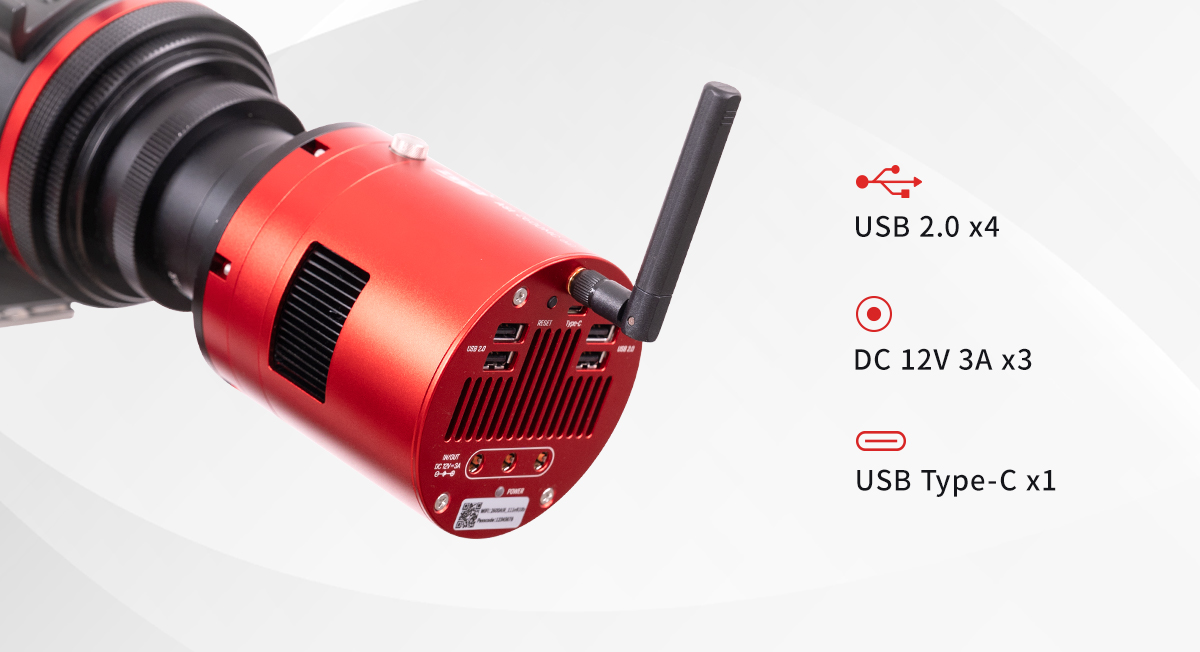

Effortlessly Connect Multiple Devices

4x USB2.0, 3x DC12V 10A, 1x USB Type-C
USB 2.0 ports for your focuser, filter wheel, and mount; DC 12V 10A input/output ports for reliable power; and a USB Type-C port for fast file transfers mean you can focus on capturing stunning images without worrying about connectivity issues.

Shoot with Confidence: Ample Storage and Stability

With a massive 256GB eMMC storage, the ASI2600MC Air easily captures multiple targets. It has been rigorously tested with over 300 benchmarks to ensure system stability. Plus, the USB 2.0 ports support up to 1TB of external storage, giving you plenty of room for all your astrophotography needs.

Dive into the Rich Details of the Celestial Targets

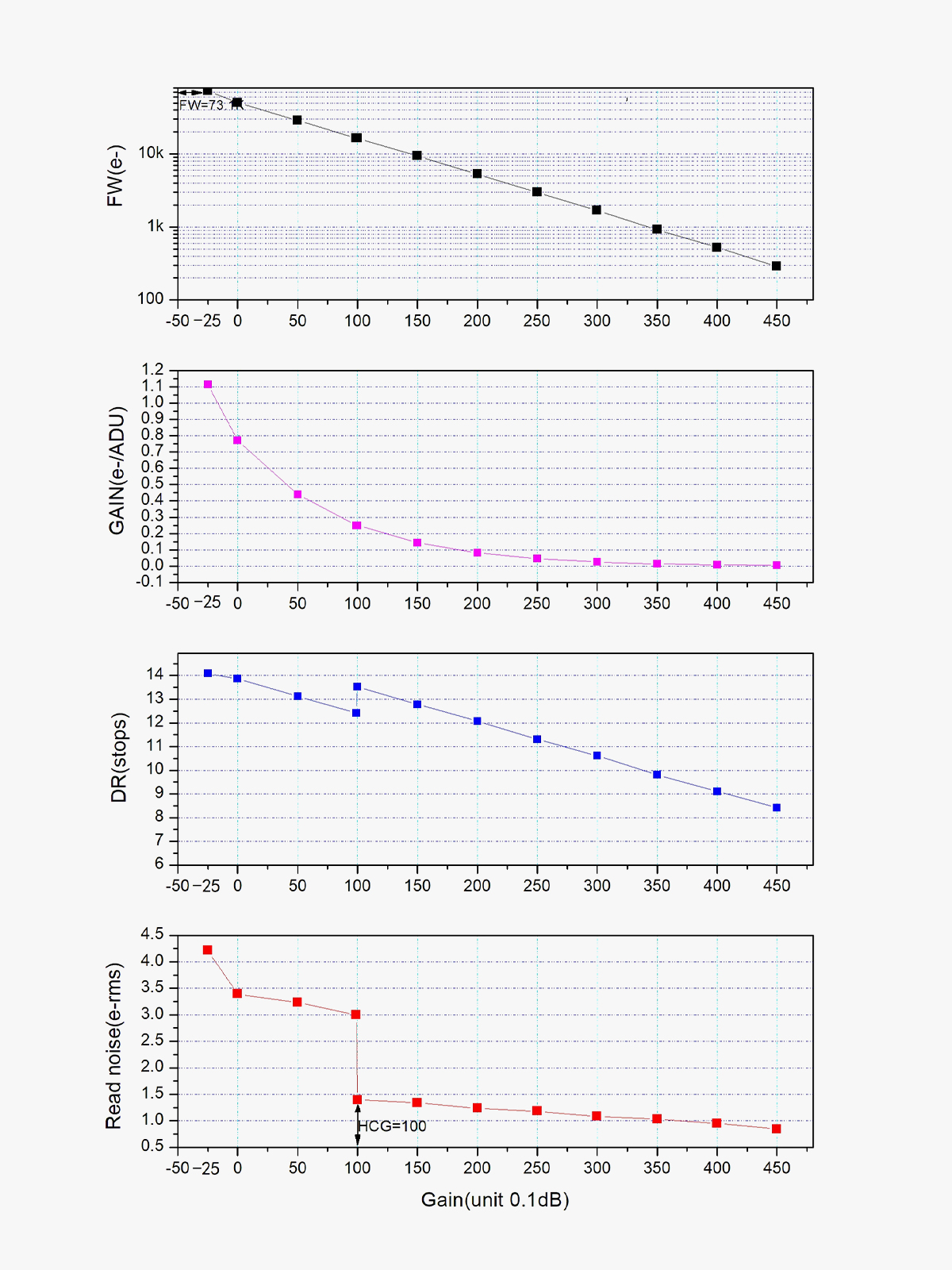

In expanded mode, this camera’s full well capacity reaches 73Ke, which is 1.46 times that of the IMX571 sensor (51ke), making long-exposure shots less prone to overexposure. The large full well capacity and high dynamic range make capturing both light and dark areas with stunning clarity and detail possible. Witness the miracle details and colours of targets like never before!

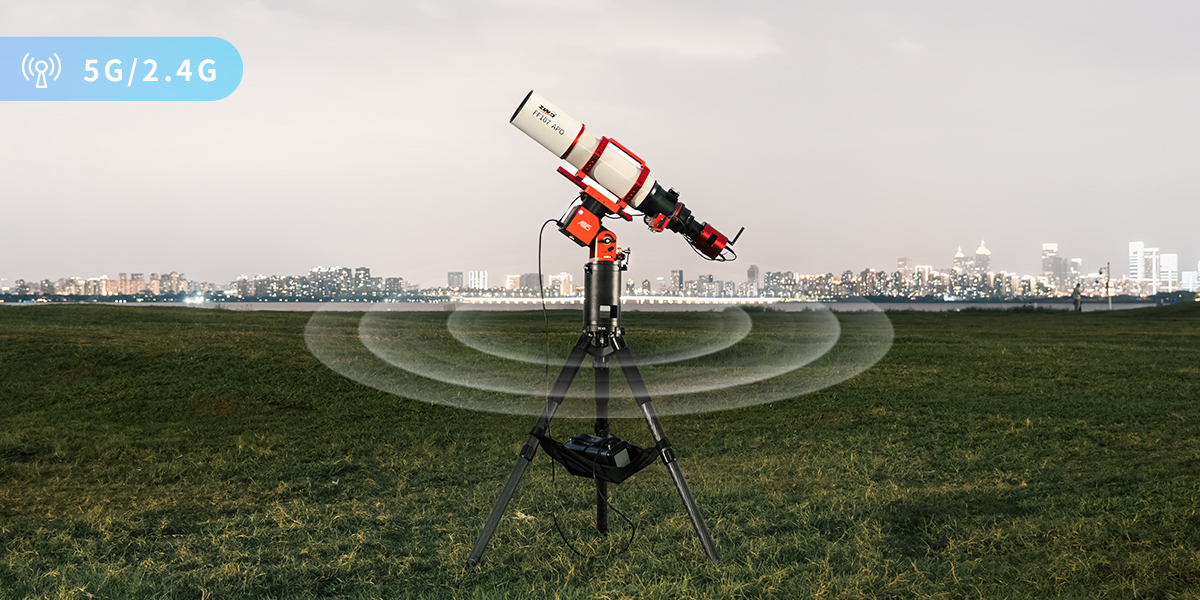

Dual-Band Wi-Fi for Stable Signal

Experience unparalleled connectivity with ZWO’s enhanced external dual-band antenna, which supports both 2.4 and 5 GHz frequencies and offers stable and smooth usage within 20 meters.

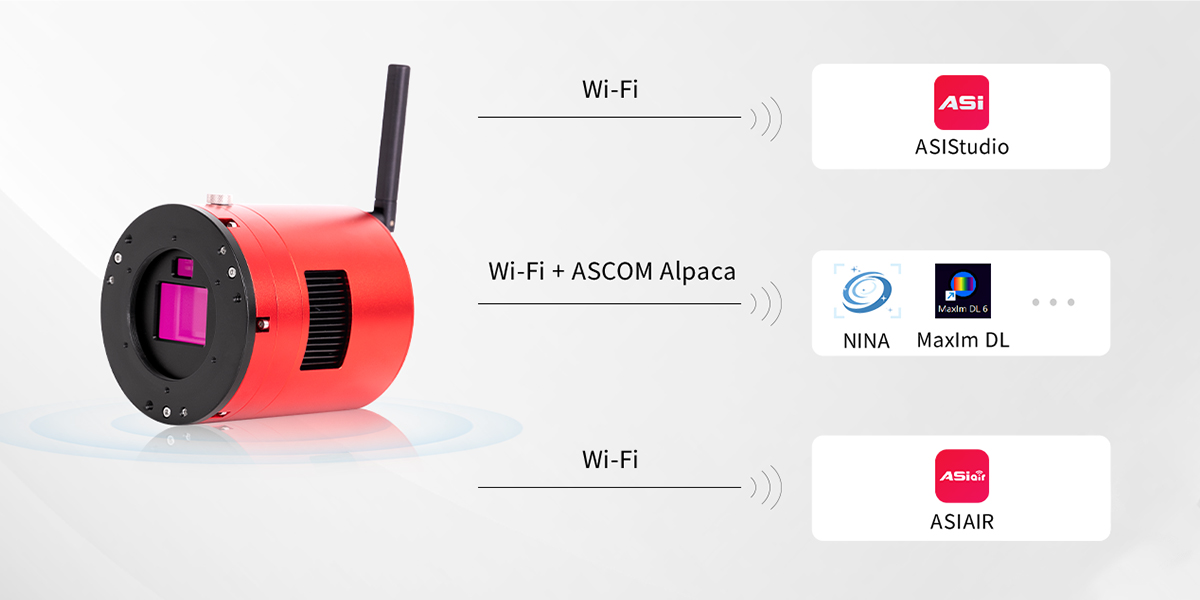

Cross-Platform Device Control

In addition to the ASIAIR App, ASI2600MC Air can wirelessly connect to ZWO’s proprietary PC control software, ASIStudio, and other third-party PC software. Third-party software can be controlled through the ASCOM extended protocol Alpaca (requires ASCOM Platform version V6.6 or higher).

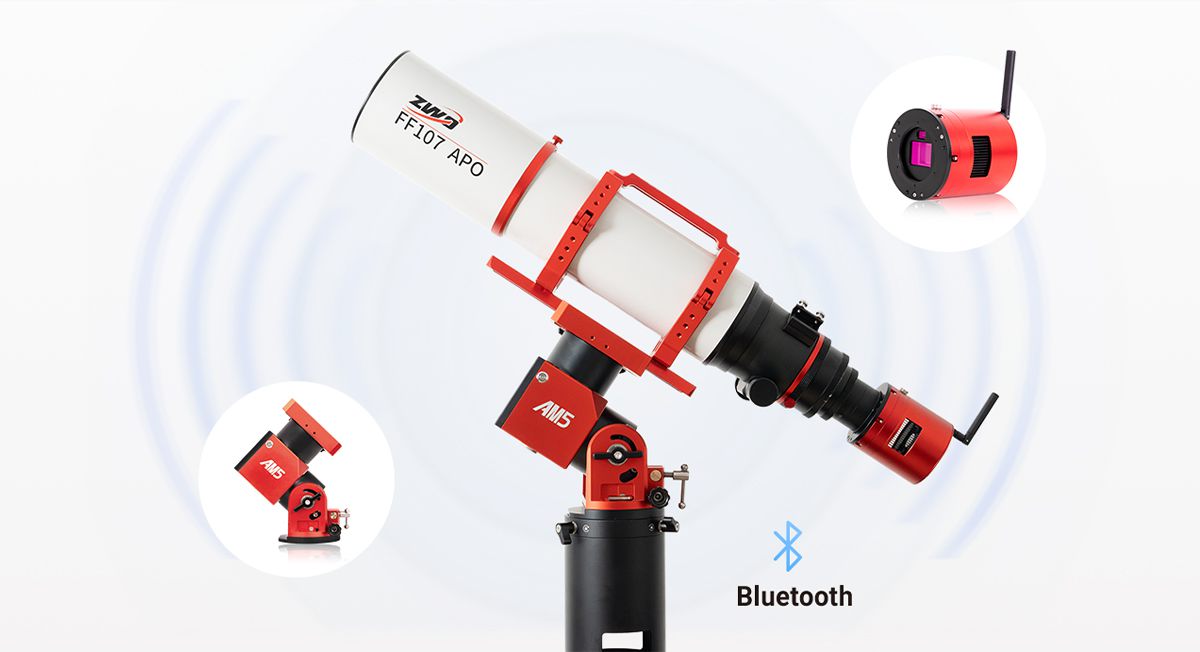

Bluetooth Connection Supported

Nice and Neat Wiring with AM3/AM5

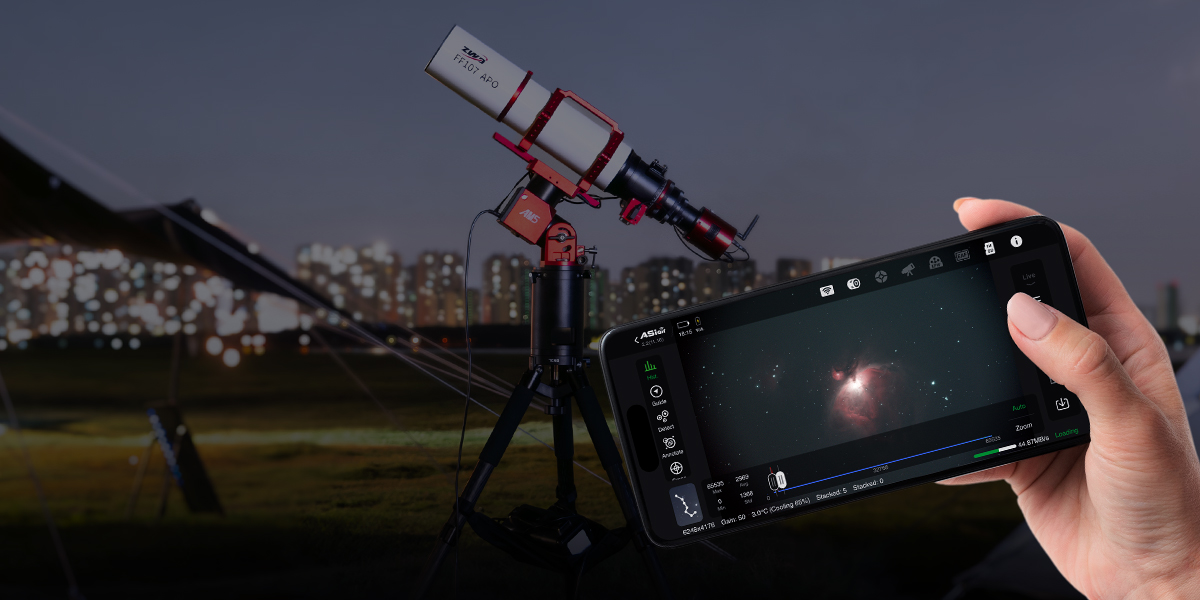

Get Full Control of Your Entire Rig at Your Fingertips

With the ASIAIR smart app, you can easily control guiding, imaging, your mount, and an electronic focuser from your phone. It supports multiple imaging modes, making it easy even for beginners to capture professional-quality images quickly.

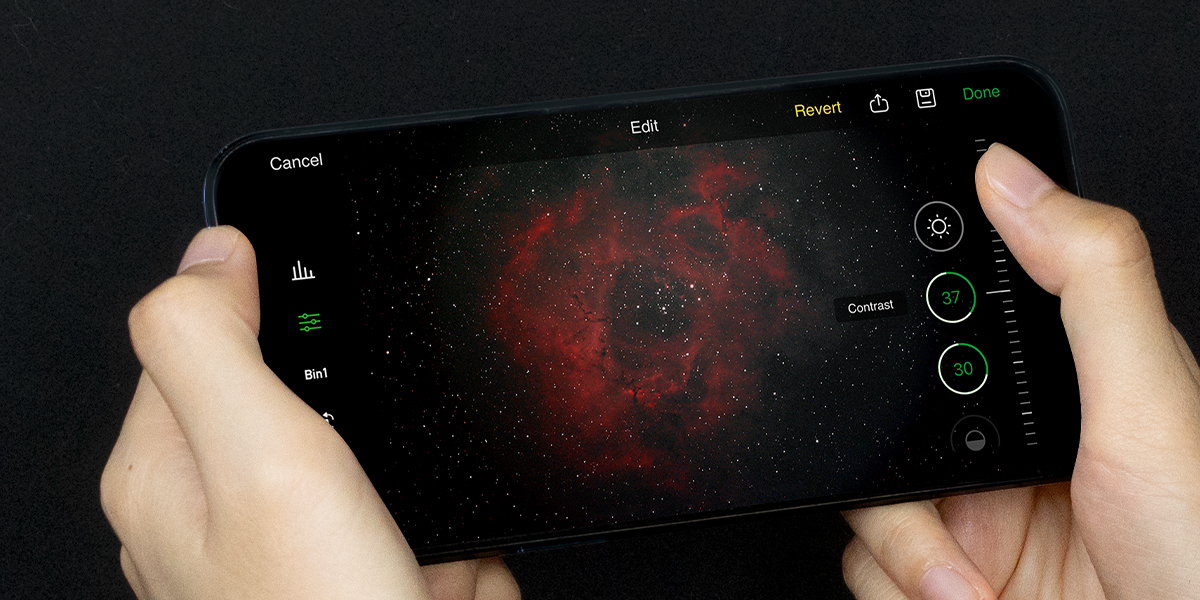

Instant Post-Processing and Sharing

Live stack is supported during your imaging session. You can also adjust brightness, contrast, and other aspects of the final image. Instantly share your masterpieces on social media platforms and astronomy communities, making your work stand out.

Go Further With ZWO’s Self-Developed System

Powered by ZWO’s patented technologies, our system ensures stable astrophotography performance. Continuous App OTA updates keep your device up-to-date with the latest features, enhancing your user experience and expanding your capabilities.
